GEN3 Microinverter 1000W (MX1000)

MX1000 / Standard

Rs. 10,500.00

GEN3 Microinverter 1000W (MX1000)

Rs. 10,500.00

Excluding taxes (5% Solar GST calculated at checkout)

Optimized Dual Power Yield: Delivers up to 1000W output power with independent Dual MPPTs (2 MPPTs), maximizing the energy harvested from both solar panels independently and efficiently.
Early Startup, Longer Generation: Features an ultra-low 22V startup voltage, allowing the system to wake up earlier in the morning and generate power longer into the evening.
Smart Module-Level Monitoring: Equipped with multiple communication options, providing real-time, module-level data tracking for enhanced performance and easier maintenance of each connected panel.
Rugged & Reliable Build: Engineered with state-of-the-art topology, a modular build, and full aluminum die-casting to ensure superior heat dissipation and exceptional safety.
Built to Last (IP67 Protection): Fully encapsulated with an IP67 rating to withstand harsh environmental conditions, guaranteeing long-lasting durability and a reliable 25-year lifespan.
Versatile Installation: Supports three distinct wiring methods, offering maximum flexibility to adapt effortlessly to diverse installation scenarios.

Built to Endure – 25 Years of Unstoppable Performance

The Microinverter 2-in-1 isn't just designed to work—it's engineered to thrive. Boasting cutting-edge topology, a modular build, and full aluminum die-casting for superior heat dissipation, it laughs off harsh weather and extreme conditions. With IP67 protection, this microinverter delivers rock-solid reliability, keeping your power flowing strong for a full 25 years.

Max Power, Min Loss

The Microinverter 2-in-1 is a powerhouse of performance. Equipped with advanced MPPT technology, an ultra-low 16V MPPT Minimum voltage, and compatibility with high-wattage PV modules (up to 600 W), it cranks out up to 1000 W of output—ensuring every ray of sunlight is turned into usable energy.

MPPT

Enabled for Optimal Efficiency

1000 W

Maximum Output Power

16 V

Ultra-low MPPT Minimum Voltage

600 W+

Module Compatible*

Safety First – No Compromises

60 V Max DC Input | Isolation Design

Safety isn't an add-on—it's the foundation. The Microinverter 2-in-1 operates at a safe 60 V DC input, eliminating the need for extra components like AFCI, RSD, or DC boxes. Its high-frequency isolation boosts reliability and slashes installation time and costs. Power your system with peace of mind.

Wiring That Works for You – Scalable Trunk Cable Solution

Trunk Cable

Purpose-Built for India: Robust, Scalable, and Cost-Effective

Engineered to withstand extreme heat and heavy monsoons, our plug-and-play AC Trunk Cable system is the ideal choice for India's dynamic solar market. It significantly streamlines the installation process, drastically reducing expensive on-site labor costs and minimizing wiring errors. Highly scalable and robust, it perfectly adapts to everything from residential rooftops to large-scale Commercial & Industrial (C&I) projects, ensuring maximum safety and minimal transmission loss.

Smart Communication,
Anywhere You Are

Multiple communication methods ensure seamless and real-time monitoring across various installation scenarios.

Wi-Fi

Easy to configure, ideal for balcony systems

RS485

For anti-reverse flow and C&I projects

4G

Best for rooftops or remote areas without Wi-Fi

Bluetooth

Local mode for real-time monitoring without network

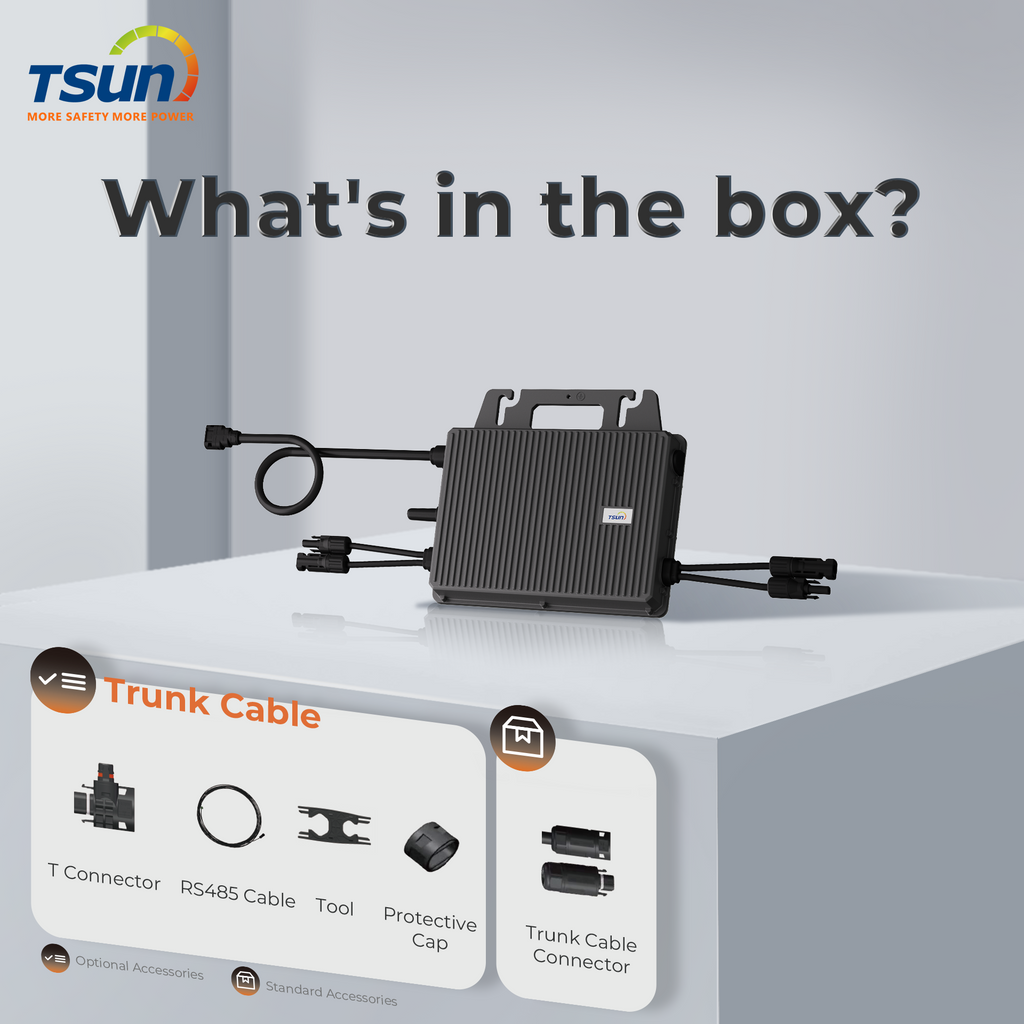

What's in the box

*

refers to standard accessories

refers to optional accessories

Specs

Model	TSOL-MS1000
Recommended Module Power [W]	300 ~ 600+
MPPT Voltage Range per Input (V)	16 ~ 60
Max. Input Voltage per Input (V)	60
Max. Input Current per Input (A)	14
Short-current (A)	20
Nominal Continuous Output Power [W]	1000
Quantity of MPPT	2
Dimensions [WxHxD mm]	261 * 228 * 32
Weight (kg)(Trunk cable)	2.8
